The Bicuspid Aortic Valve Repair With External Or Subcommissural Annuloplasty – A 13-Year Experience

Marek Jasinski; Jakub  Jasinski; Damian  Hudziak; Andrzej Kansy; Radoslaw  Gocol

doi:10.36923/jhvd.v30i1.402

Open Access Article

Marek Jasinski⁽¹⁾ , Jakub Jasinski⁽²⁾ , Damian Hudziak ⁽³⁾ , Andrzej Kansy⁽⁴⁾ , Radoslaw Gocol⁽⁵⁾

(1) 4. Department of Cardiac Surgery, Wroclaw Medical University, Wroclaw, Poland,

(2) Department of Cardiology and Structural Heart Diseases, Medical University of Silesia, Katowice, Poland,

(3) Department of Cardiac Surgery, Medical University of Silesia, Katowice, Poland,

(4) Children’s Memorial Pediatric Health Institute, Warsaw, Poland,

(5) Department of Cardiac Surgery, Medical University of Silesia, Katowice, Poland

https://doi.org/10.36923/jhvd.v30i1.402

Issue
Vol. 30 No. 1 (2025): In Progress

Submitted
August 15, 2025

Accepted
August 15, 2025

Published
August 29, 2025

Download PDF

Abstract

Background and Aim of the Study: An incompetent bicuspid aortic valve (BAV) can be treated through valve replacement or repair using various surgical techniques. This study presents the outcomes of a 13-year single-surgeon experience in BAV repair and compares two annuloplasty techniques: external and subcommissural aortic annuloplasty. Materials and Methods: A total of 150 consecutive patients (111 males; mean age: 43.2 ± 17.5 years) with BAV insufficiency, with or without aortic dilatation, underwent valve repair at three institutions. Multivariable logistic regression was used to identify associations between risk factors and major adverse events. Among these, 50 patients were prospectively assigned to one of two groups based on the annular stabilization technique: Group EA received external annuloplasty, while Group SCA underwent subcommissural annuloplasty. All patients in both groups were evaluated by transthoracic echocardiography before surgery and two years postoperatively. Results: There was no in-hospital mortality, and all patients survived throughout the follow-up period. Nine patients (6%) developed moderate to severe postoperative insufficiency and required reoperation. The Kaplan–Meier estimated freedom from reoperation at eight years was 100% in patients who did not undergo subcommissural annuloplasty, compared to 81% in those who did (p = 0.037). External annuloplasty was associated with a significantly smaller postoperative aortic annulus diameter (24.1 ± 2.6 mm vs. 25.8 ± 2.1 mm, p < 0.05), and lower mean and peak transvalvular gradients (7 ± 4 mmHg vs. 13 ± 4 mmHg, p = 0.02; and 15.3 ± 9.7 mmHg vs. 20.7 ± 5.6 mmHg, p = 0.03, respectively). Aortic root or ascending aorta replacement was also found to be a predictor of repair durability (p = 0.0039). Conclusions: Bicuspid aortic valve repair provides favorable short- and midterm outcomes. External annuloplasty offers superior annular stabilization and hemodynamic performance compared to subcommissural annuloplasty. Additionally, concomitant aortic replacement further improves the long-term durability of the repair.

Keywords:

Aortic Valve Repair, Bicuspid Aortic Valve, Surgical Outcome Analysis, External Annuloplasty, Valve-Sparing Surgery

Full text article

Generated from XML file

References

[1]. Caceres M, Ma Y, Rankin JS, et al. Evolving practice trends of aortic root surgery in North America. Ann Thorac Surg. 2014;98(3):863-870. doi:10.1016/j.athoracsur.2014.07.053

[2]. Schäfers H-J. Reconstruction of the bicuspid aortic valve. Op Tech Thorac Cardiovasc Surg.2007;12(1):2-13. doi:10.1053/j.optechstcvs.2007.02.002

[3]. Aicher D, Langer F, Adam O, et al. Cusp repair in aortic valve reconstruction: does the technique affect stability? J Thorac Cardiovasc Surg. 2007;134(6):1533-1539. doi:10.1016/j.jtcvs.2007.08.023

[4]. Chiappini B, Pouleur A-C, Noirhomme P, et al. Repair of trileaflet aortic valve prolapse: mid-term outcome in patients with normal aortic root morphology. Interact Cardiovasc Thorac Surg.2007;6(1):56-59. doi:10.1510/icvts.2006.140848

[5]. Price J, De Kerchove L, El Khoury G. Aortic valve repair for leaflet prolapse. Semin Thorac Cardiovasc Surg. 2011;23(2):149-151. doi:10.1053/j.semtcvs.2011.08.010

[6]. El Khoury G, Glineur D, Rubay J, et al. Functional classification of aortic root/valve abnormalities and their correlation with etiologies and surgical procedures. Curr Opin Cardiol. 2005;20(2):115-121.

[7]. Boodhwani M, De Kerchove L, Glineur D, et al. Repair-oriented classification of aortic insufficiency: impact on surgical techniques and clinical outcomes. J Thorac Cardiovasc Surg.2009;137(2):286-294. doi:10.1016/j.jtcvs.2008.08.054

[8]. Schäfers H-J, Bierbach B, Aicher D. A new approach to the assessment of aortic cusp geometry. J Thorac Cardiovasc Surg. 2006;132(2):436-438. doi:10.1016/j.jtcvs.2006.04.032

[9]. Aicher D, Langer F, Adam O, et al. Bicuspid valve repair. Circulation. 2011;123(2):178-185. doi:10.1161/CIRCULATIONAHA.109.934679

[10]. Kirklin JW, Barratt-Boyes BG. Ventricular septal defect and aortic incompetence. In: Cardiac Surgery. New York, NY: John Wiley & Sons; 1986:657.

[11]. De Kerchove L, Boodhwani M, Glineur D, et al. Cusp prolapse repair in trileaflet aortic valves: free margin plication and free margin resuspension techniques. Ann Thorac Surg.2009;88(2):455-461. doi:10.1016/j.athoracsur.2009.04.064

[12]. De Kerchove L, Glineur D, Poncelet A, et al. Repair of aortic leaflet prolapse: a ten-year experience. Eur J Cardiothorac Surg. 2008;34(4):780-784. doi:10.1016/j.ejcts.2008.06.030

[13]. Boodhwani M, De Kerchove L, Glineur D, et al. Assessment and repair of aortic valve cusp prolapse: implications for valve-sparing procedures. J Thorac Cardiovasc Surg. 2011;141(4):917-925. doi:10.1016/j.jtcvs.2010.12.006

[14]. Jasinski M, Gocol R, Malinowski M, et al. Predictors of early and medium-term outcome of 200 consecutive aortic valve and root repairs. J Thorac Cardiovasc Surg. 2015;149(1):123-129. doi:10.1016/j.jtcvs.2014.08.057

[15]. David TE, Feindel CM. An aortic valve-sparing operation for patients with aortic incompetence and aneurysm of the ascending aorta. J Thorac Cardiovasc Surg. 1992;103(4):617-622. doi:10.1016/S0022-5223(19)34942-6

[16]. Sievers HH, Schmidtke C. A classification system for the bicuspid aortic valve from 304 surgical specimens. J Thorac Cardiovasc Surg. 2007;133(5):1226-1233. doi:10.1016/j.jtcvs.2007.01.039

[17]. O’Brien SM, Shahian DM, Filardo G, et al. The Society of Thoracic Surgeons 2008 cardiac surgery risk models: part 2, isolated valve surgery. Ann Thorac Surg. 2009;88(1)(suppl):S23-S42. doi:10.1016/j.athoracsur.2009.05.056

[18]. Tzemos N, Therrien J, Yip J, et al. Outcomes in adults with bicuspid aortic valves. JAMA.2008;300(11):1317-1325. doi:10.1001/jama.300.11.1317

[19]. Michelena HI, Desjardins VA, Avierinos J-F, et al. Natural history of asymptomatic patients with normally functioning or minimally dysfunctional bicuspid aortic valve in the community. Circulation. 2008;117(21):2776-2784. doi:10.1161/CIRCULATIONAHA.107.740878

[20]. Thanassoulis G. Retrospective study to identify predictors of the presence and rapid progression of aortic dilatation in patients with bicuspid aortic valves. Nat Clin Pract Cardiovasc Med. 2008;5(12):821-828. doi:10.1038/ncpcardio1369

[21]. Nishimura RA, Otto CM, Bonow RO, et al. 2014 AHA/ACC guideline for the management of patients with valvular heart disease: executive summary. J Am Coll Cardiol. 2014;63(22):2438-2488. doi:10.1016/j.jacc.2014.02.537

[22]. Itagaki S, Chikwe JP, Chiang YP, et al. Long-term risk for aortic complications after aortic valve replacement in patients with bicuspid aortic valve versus Marfan syndrome. J Am Coll Cardiol.. 2015;65(22):2363-2369. doi:10.1016/j.jacc.2015.03.575

[23]. Vallabhajosyula P, Komlo CM, Szeto WY, et al. Aortic annulus diameter affects the durability of the repaired bicuspid aortic valve. J Heart Valve Dis. 2015;24(4):412-419.

[24]. David TE. Surgical treatment of aortic valve disease. Nat Rev Cardiol. 2013;10(7):375-386. doi:10.1038/nrcardio.2013.72

[25]. Navarra E, El Khoury G, Glineur D, et al. Effect of annulus dimension and annuloplasty on bicuspid aortic valve repair. Eur J Cardiothorac Surg. 2013;44(2):316-323. doi:10.1093/ejcts/ezt045

[26]. Vallabhajosyula P, Komlo CM, Szeto WY, et al. Root stabilization of the repaired bicuspid aortic valve: subcommissural annuloplasty versus root reimplantation. Ann Thorac Surg.2014;97(4):1227-1234. doi:10.1016/j.athoracsur.2013.10.071

[27]. Lansac E, Di Centa I, Sleilaty G, et al. Long-term results of external aortic ring annuloplasty for aortic valve repair. Eur J Cardiothorac Surg. 2016;50(2):350-360. doi:10.1093/ejcts/ezw070

[28]. Mazzitelli D, Stamm C, Rankin JS, et al. Hemodynamic outcomes of geometric ring annuloplasty for aortic valve repair: results of a 4-center pilot trial. J Thorac Cardiovasc Surg.2014;148(1):104-109.e1. doi:10.1016/j.jtcvs.2013.08.031

[29]. Schäfers H-J, Kunihara T, Fries P, et al. Valve-preserving root replacement in bicuspid aortic valves. J Thorac Cardiovasc Surg. 2010;140(6)(suppl):S36-S40. doi:10.1016/j.jtcvs.2010.07.057

Authors

Marek Jasinski

4. Department of Cardiac Surgery, Wroclaw Medical University, Wroclaw, Poland

https://orcid.org/0000-0002-9989-7748

marekjasinski@yahoo.pl (Primary Contact)

Jakub Jasinski

Department of Cardiology and Structural Heart Diseases, Medical University of Silesia, Katowice, Poland

https://orcid.org/0000-0002-9247-1242

Damian Hudziak

Department of Cardiac Surgery, Medical University of Silesia, Katowice, Poland

https://orcid.org/0000-0003-3715-0697

Andrzej Kansy

Children’s Memorial Pediatric Health Institute, Warsaw, Poland

https://orcid.org/0000-0002-7603-8545

Radoslaw Gocol

Department of Cardiac Surgery, Medical University of Silesia, Katowice, Poland

https://orcid.org/0000-0002-2097-1918

Author Biographies

Marek Jasinski, 4. Department of Cardiac Surgery, Wroclaw Medical University, Wroclaw, Poland

Prof. Marek Jasiński is a Full and Ordinary Professor at Wroclaw Medical University and serves as the Chief and Chair of Cardiac Surgery. A graduate of the Silesian Medical University, he began his cardiac surgery residency in 1990 and completed specialist registrar training in the United Kingdom (1996–2000). He earned his Fellowship of the European Board of Cardiothoracic Surgery (FETCS) in Brussels in 1998. His international training includes fellowships at the Cleveland Clinic Foundation (USA) under Prof. Delos Cosgrove III and Prof. Frank Sabik III; Saint Luke's Hospital in Brussels with Prof. Gebrine El-Khoury; and Sequoia Hospital, Stanford University, under Dr. Vincent Gaudiani. Prof. Jasiński has extensive clinical experience in reconstructive cardiac surgery, both pediatric and adult, having performed over 500 stentless valve implantations and more than 550 aortic valve repairs and valve-sparing procedures. His work has been presented internationally, reflecting his contributions to advancing surgical techniques. A committed educator, he has coordinated postgraduate and residency programs within the Polish Society of Cardiac and Thoracic Surgeons and has been an active faculty member of Windsor Academy, the educational platform of the European Association for Cardio-Thoracic Surgery (EACTS), since 2014. His research involvement includes international randomized clinical trials and registries such as SOS, ASSERT, STITCH, ART, FREESTYLE, LAAOS, and AVIATOR.

Jakub Jasinski, Department of Cardiology and Structural Heart Diseases, Medical University of Silesia, Katowice, Poland

Dr. Jakub Jasiński is a cardiology resident and PhD candidate specializing in cardiac surgery at the Medical University of Silesia. He completed his medical degree at the same institution in 2022, following his graduation from the International Baccalaureate (IB) Diploma Programme at Adam Mickiewicz High School III in Katowice (2016). He holds a bilingual IB diploma and has a growing publication record in the field of cardiothoracic surgery. His research focuses on topics including bicuspid aortic valve repair, aortic annulus remodeling, and valve-sparing procedures in Marfan syndrome.

Damian Hudziak , Department of Cardiac Surgery, Medical University of Silesia, Katowice, Poland

Damian Hudziak, MD, PhD, Cardiac Surgeon, Vice-Head of Department of Cardiac Surgery at Medical University of Silesia.

Andrzej Kansy, Children’s Memorial Pediatric Health Institute, Warsaw, Poland

Prof. Andrzej Kansy is a congenital cardiac surgeon with over three decades of clinical and academic experience. He currently serves as the Director of the Department of Cardiothoracic Surgery at the Children’s Memorial Health Institute, where he also holds a professorship. He began his career in pediatric surgery under the mentorship of Prof. Irena Smólska, earning his first specialist title in 1989. In 1998, he completed his PhD with a dissertation on surgical outcomes in infants with coarctation of the aorta and became a second-degree specialist in cardiac surgery under the supervision of Prof. Jarosław Stodulski. Prof. Kansy has held several leadership roles, including head of the Cardiac Surgical Intensive Care Unit and associate specialist in pediatric cardiothoracic surgery. He received habilitation in 2014 based on his research into risk factors for mortality and postoperative complications in children with congenital heart disease. Since 2009, he has also served as a lecturer at the Medical Center for Postgraduate Education, training physicians in pediatric cardiology and cardiac surgery.

Radoslaw Gocol, Department of Cardiac Surgery, Medical University of Silesia, Katowice, Poland

Radosław Gocoł, MD, PhD, Cardiac Surgeon, Head of the Department of Cardiac Surgery at the Medical University of Silesia.

Jasinski, M., Jasinski, J. ., Hudziak , D. ., Kansy, A., & Gocol, R. . (2025). The Bicuspid Aortic Valve Repair With External Or Subcommissural Annuloplasty – A 13-Year Experience. Journal of Heart Valve Disease Innovation, 30(1), 71-78. https://doi.org/10.36923/jhvd.v30i1.402

Download Citation

This work is licensed under a Creative Commons Attribution 4.0 International License.

Copyright / Open Access Policy: This journal provides immediate free open access and is distributed under the terms and conditions of the Creative Commons Attribution License (CC BY). This is an open-access journal which means readers can access it freely. Readers may read, download, copy, distribute, print, search, or link to the full texts of the articles for any lawful purpose without seeking prior permission from the publisher or author. This is consistent with the Budapest Open Access Initiative (BOAI) definition of open access.

How to Cite

Download Citation

Introduction

A bicuspid aortic valve (BAV) is the most common congenital cardiac abnormality, affecting approximately 1–2% of the general population. Significant aortic insufficiency is more frequently observed in BAV than in tricuspid aortic valves and is often accompanied by aortopathy. In selected patients, BAV can be treated with valve repair rather than replacement [1]. Various surgical techniques for aortic valve repair have been developed [2–5], typically selected based on a surgery-oriented classification of aortic regurgitation (AR) [6,7]. Among the critical factors influencing the durability of valve repair is annular stabilization. However, there is no clear consensus regarding which annuloplasty technique provides the most favorable short- and long-term outcomes in patients with BAV.

This study presents a 13-year single-surgeon experience in BAV repair and provides a comparative analysis of different annular stabilization techniques.

Materials and methods

Patient Population

A total of 150 patients with bicuspid aortic valves (mean age: 43.2 ± 17.5 years; 111 males, 74%) were operated on by a single surgical team led by Professor Marek Jasinski across three centers between 2003 and 2016. All patients underwent elective aortic valve-sparing surgery for chronic aortic regurgitation (AR), with or without concomitant aortic root dilatation. A schematic overview of the study design is presented in Figure 1.

Aortic regurgitation was classified according to established criteria [7], with the following distribution: type Ia/b (dilated ascending aorta and/or root with a normal aortic annulus) in 78 patients (52%), type Ib + Ic (dilated aortic root, ascending aorta, and aortic annulus) in 31 patients (21%), type Ic only (dilated annulus) in 28 patients (19%), and type II (cusp prolapse) in 120 patients (80%). Regarding BAV morphology, type 0 was identified in 25 patients (17%), type I in 117 patients (78%), and type II (predominantly unicuspid) in 8 patients (5%).

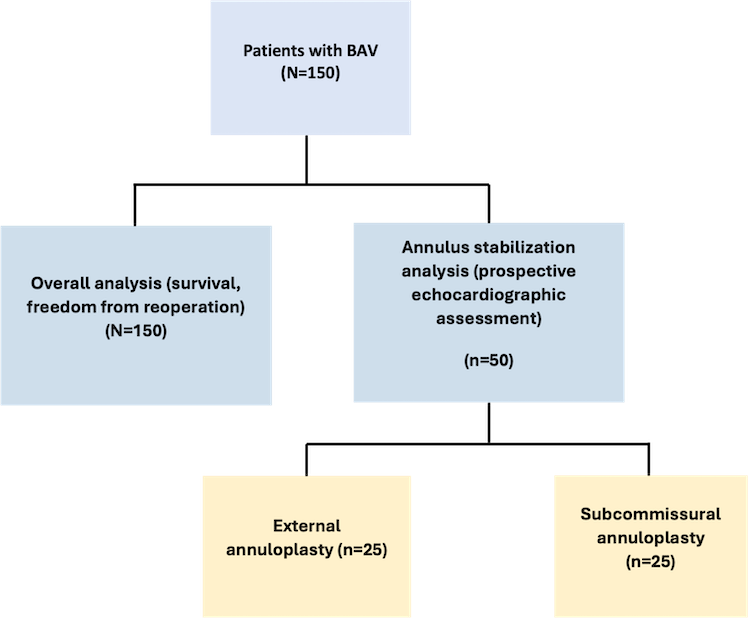

Figure 1.The schematic presentation of the study.

Echocardiography

Postoperative mortality, morbidity (defined as the need for reoperation), and pre- and postoperative echocardiographic parameters were evaluated. Transthoracic echocardiography (TTE) was performed preoperatively and one month after surgery. Intraoperative transesophageal echocardiography (TEE) was carried out after induction of general anesthesia, both prior to and following cardiopulmonary bypass.

The echocardiographic assessments focused on the degree and nature of AR, the presence and location of leaflet prolapse, specific BAV anatomical features, leaflet and raphe pliability or calcification, annular dimensions, and left ventricular measurements.

Subanalysis: Aortic Annulus Stabilization

Among the 150 patients, a subgroup of 50 consecutive individuals operated on between 2013 and 2014 was prospectively allocated into two groups based on the aortic annulus stabilization technique used. The first group (EA, mean age: 50.9 years; NYHA class III–IV: 2 patients, 4%) underwent external annuloplasty using a Dacron strip. The second group (SCA, mean age: 50.8 years; NYHA class III–IV: 2 patients, 4%) received subcommissural annuloplasty with pledgeted mattress sutures. Eligibility criteria included BAV type I anatomy with fused leaflets (Sievers classification [13]), moderate to severe AR, an enlarged aortic annulus (>25 mm), and dilatation of the aortic root or ascending aorta. The two groups were comparable in baseline characteristics, including age, ventricular dimensions, aortic measurements, and left ventricular contractility.

All patients in both groups underwent replacement of the ascending aorta. In the EA group, 19 patients had STJ remodeling with ascending aorta replacement, and six underwent valve reimplantation (David procedure). In the SCA group, 21 patients had STJ remodeling and ascending aorta replacement, while four underwent aortic root remodeling.

Echocardiographic evaluations were conducted preoperatively and two years postoperatively, assessing parameters such as mean and peak transaortic gradients, end-diastolic volume and dimension of the left ventricle, and dimensions of the aortic annulus, root, STJ, and ascending aorta. The mean follow-up duration was 594 ± 107.9 days, with group EA at 598 ± 130 days and group SCA at 545 ± 58 days.

Surgical Management

All surgeries were performed via median sternotomy, utilizing standard cardiopulmonary bypass with cannulation of the ascending aorta or aortic arch and the right atrium. A left ventricular vent was inserted through the right superior pulmonary vein. Myocardial protection was achieved using antegrade cold blood cardioplegia. The ascending aorta was transected above the STJ. Valve assessment included placement of 4/0 Prolene stay sutures above each commissure under tension to facilitate inspection.

The effective height of each cusp, central leaflet coaptation, and leaflet prolapse were evaluated [8,9], followed by assessment of leaflet free margin lengths by approximating the Noduli Arantii to identify prolapsing segments [10–13]. Fused leaflet anatomy was also examined. The aortic regurgitation classification developed by El-Khoury was applied [14]. In type Ia regurgitation, STJ remodeling was performed via ascending aorta replacement. In type Ib, root remodeling involved individual sinus replacement. In type Ic, subcommissural or external annuloplasty, with or without valve reimplantation, was performed. Graft sizing was guided by leaflet height and subcommissural triangle dimensions, using the El-Khoury and David-Feindel formulas [10,15]. Commissures were placed at 180° angles during root remodeling or reimplantation to optimize valve symmetry and leaflet mobility.

Procedure selection and the extent of aortic replacement were guided by the functional classification of AR and the dimensions of the affected aortic segments. The David procedure was reserved for patients with symmetric aortic root enlargement (>45 mm) and annular dilatation.

Annular stabilization was achieved via subcommissural or external annuloplasty. Subcommissural annuloplasty employed two pledgeted braided 2-0 sutures to constrict the subcommissural triangles. External annuloplasty involved interrupted pledgeted 2-0 braided sutures supported by an external Dacron ring, or was performed as part of valve reimplantation. Annuloplasty techniques were supplemented by cusp prolapse repair, raphe excision, and, if necessary, autologous pericardial patch reconstruction. Gore-Tex leaflet resuspension or free margin plication was used to correct leaflet prolapse when required [11].

The TEE assessment during surgery ensured that coaptation height was ≥4 mm following repair. Mild AR (grade 1) was defined by a vena contracta <3 mm, a central jet/LVOT width ratio <25%, and normal descending aortic flow. Moderate AR (grade 2) involved a vena contracta of 3–6 mm and a jet/LVOT ratio between 25–65%, often with mild diastolic flow reversal and end-diastolic velocity <20 cm/sec. Severe AR (grade 3) was defined by higher values. Transvalvular gradients were measured using continuous-wave Doppler.

Data Acquisition and Analysis

Baseline demographic, clinical, and echocardiographic data were retrospectively collected for the entire cohort, with prospective data collection for the 50 patients in the annulus stabilization subanalysis (EA and SCA groups). Operative and follow-up information was obtained through direct evaluation and review of medical records. Patients in the subanalysis were scheduled for detailed clinical and echocardiographic follow-up at 1,5 years years, which concluded at the end of 2016.

Preoperative and perioperative risk factors, including baseline characteristics and surgical techniques, were examined to identify predictors of valve-related events and long-term survival. This analysis covered the entire cohort of 150 patients. Baseline variables followed the Society of Thoracic Surgeons guidelines [22] and were expressed as means with standard deviations.

Kaplan-Meier analysis was used to estimate actuarial freedom from reoperation over an eight-year period, chosen because at least 15% of the initial cohort remained uncensored at that time point. Group comparisons were performed using the unpaired Student’s t-test or the Mann-Whitney U-test for continuous variables and the Chi-square test for categorical data. Associations between potential covariates and study endpoints were analyzed using multivariate logistic regression. Kaplan-Meier survival curves and the log-rank test were used to compare reoperation-free survival between EA and SCA groups. A p-value <0.05 was considered statistically significant. All analyses were conducted using Statistica 12 (Stat-Soft, USA). The study was approved by the Local Ethics Committee under the KNW2/136/06 statutory grant.

Results

Early Outcomes

No patient died during the early postoperative period. Concomitant surgical procedures included coronary artery bypass grafting in six patients (4%), mitral valve procedures in eight patients (5%), and tricuspid valve surgery in three patients (2%). The operative techniques are detailed in Table 1. The mean cardiac ischemic time was 72.4 ± 41.9 minutes, while the mean cardiopulmonary bypass time was 99.4 ± 61.7 minutes.

Table 1.BAV repair techniques (N=150). AR- Aortic regurgitation class, STJ – sino-tubular junction, BAV-bicuspid aortic valve
Surgical techniques used for BAV repair	Number of patients (N=150)
Leaflet plication	103 (69%)
Gore-Tex reinforcement	17 (11%)
Resection/pericardial patch	41 (27%)/8 (5%)
Leaflet shaving	53 (35%)
External annular stabilization	68 (45%)
Subcommissural annuloplasty	64 (43%)
Remodeling STJ+ aorta replacement	47 (31%)
Remodeling root+ aorta replacement	31 (21%)
Reimplantation-Overall	31 (21%)
Reimplantation -Valsalva graft	20 (13%)
Reimplantation -David 1 procedure	11 (7%)

Source: by the author

Three patients (2%) required procedural conversions or reoperations during the same hospital admission. These included one case of failed root remodeling and two cases of unicuspid valve repair failure. All three patients underwent prosthetic valve replacement, with two receiving a Bentall procedure. Postoperative complications are summarized in Table 2.

Table 2.The early postoperative outcomes of patients with bicuspid aortic valve repair (N=150). IABP – *intra-aortic balloon pump*
Early postoperative complications	Number of patients (N=150)
Early mortality	0
Early conversion to aortic valve replacement (intraoperative or on the same admission)	3 (2%)
Reoperation for bleeding	3 (2%)
IABP	2 (1%)
Low cardiac output	3 (2%)
Ventilator>48h	1(1%)
Dialysis dependent renal failure	1 (1%)
Deep sternal wound infection	1 (1%)

Source: by the author

In the early postoperative period, most patients exhibited either no or only mild aortic regurgitation. Moderate residual AR was observed in seven patients (4.6%). The preoperative and six-month postoperative echocardiographic data for the full cohort of 150 patients are presented in Table 3.

Table 3.The preoperative and early (1 month) postoperative echocardiography of all study participants with bicuspid aortic valve repair (N=150), AR – *aortic regurgitation, EF- left ventricle ejection fraction, VAJ* – *ventriculo-aortic junction, EDV* – *enddiastolic volume of the left ventricle, EDD* – *enddiastolic dimension of the left ventricle, ESV* – *endsystolic volume of the left ventricle*
	Before the operation	After the operation	P value
EF[%]	54.1±7.3	55.4±9.9	0.215
Aortic annulus (VAJ) [mm]	27.1±3.5	25.2±3.3	0.003
Aortic root dimension [mm]	43.6±7.9	38.1±4.4	<0.001
Sino-tubular junction [mm]	36.6±7.6	29.8±3.9	0.002
Tubular ascending aorta dimension [mm]	46.4±9.0	33.4±4.4	<0.001
EDV[ml]	202.36±76.6	159.1±47.4	0.003
EDD [mm]	62.8±9.8	54.5±47.4	0.03
ESV [ml]	110.7±57.9	60.7±41.2	0.009
Mean transaortic gradient [mmHg]	15.3±5.1	12.3±3.05	0.07
Aortic regurgitation width [mm]	10.3±3.5	3.5±2,2	<0.001
AR, none-trivial	8 (5%)	123 (82%)	-
AR, mild	15 (10%)	15 (10%)	-
AR, moderate	63 (42%)	7 (5%)	-
AR, severe	64 (43%)	2 (1%)	-

Source: by the author

Late Outcomes

All patients survived throughout the follow-up period. The Kaplan-Meier estimated freedom from reoperation was 88% at eight years (Figure 2), and the overall rate at 12.5 years was 83%. Eleven patients (7%) developed moderate-to-severe AR, and nine of these (6%) ultimately required late reoperation.

Figure 2.Kaplan-Meier freedom from reoperation for patients undergoing bicuspid aortic valve repair, n=150.

Indications for late reoperation included a ventricular septal defect (VSD) caused by rupture of the subcommissural annuloplasty at the perimembranous septum, failure following subcommissural annuloplasty and raphe excision with Gore-Tex leaflet stabilization (four cases), failure of unicuspid repair (one case), perforation of the non-coronary cusp after subcommissural annuloplasty and patch repair (one case), aortic stenosis following valve repair with concurrent reimplantation (one case), and progression after subcommissural repair with concomitant closure of the ductus arteriosus (one case).

Multivariate logistic regression identified three statistically significant risk factors for reoperation: use of subcommissural annuloplasty (OR: 10.0; 95% CI: 1.5–67.4; p = 0.0174), absence of leaflet plication (OR: 8.6; 95% CI: 1.5–48.5; p = 0.0143), and the lack of concomitant valve-sparing aortic replacement (OR: 19.8; 95% CI: 2.6–150.8; p = 0.0039).

At eight years, the Kaplan-Meier estimated freedom from reoperation was 100% in patients who did not receive subcommissural annuloplasty (n = 87), compared to 81% in those who did (n = 67), as shown in Figure 3.

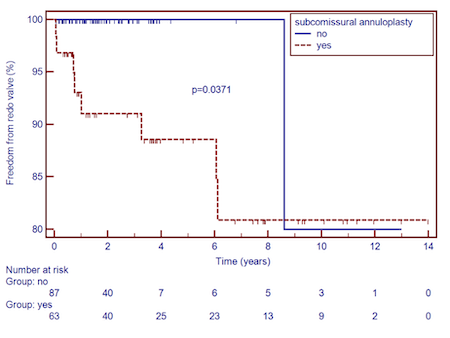

Figure 3.Kaplan-Meier freedom from reoperation for patients with or without subcommissural annuloplasty, n=150.

Aortic Annulus Stabilization Subanalysis

Patients in the external annuloplasty (EA) and subcommissural annuloplasty (SCA) groups were generally comparable in terms of preoperative echocardiographic parameters (see Table 4). However, significant differences were noted in the maximum aortic root diameter (47.1 ± 4.2 mm in EA vs. 41.1 ± 4.7 mm in SCA, p = 0.02), end-systolic volume of the left ventricle (71.2 ± 33.0 ml in EA vs. 112.3 ± 49.4 ml in SCA, p = 0.04), and end-systolic dimension of the left ventricle (49.0 ± 8.3 mm in EA vs. 35.7 ± 6.6 mm in SCA, p < 0.05).

Postoperative reverse remodeling, as assessed by end-diastolic volume and dimension, was similar between the two groups. Aortic regurgitation, measured by regurgitant jet width, was significantly reduced in both groups after surgery and remained comparable during follow-up. However, a significant reduction in aortic annular diameter was observed only in the EA group (27.5 ± 3.0 mm preoperatively vs. 24.1 ± 2.6 mm postoperatively, p = 0.002), whereas the reduction in the SCA group was not statistically significant (27.7 ± 4.7 mm vs. 25.8 ± 3.8 mm, p = 0.7).

At 1,5 years follow-up, the EA group exhibited significantly lower mean transvalvular gradients compared to the SCA group (7 ± 4.0 mmHg vs. 12.6 ± 4.6 mmHg, p = 0.018). Complete pre- and postoperative echocardiographic data are provided in Table 4.

Table 4.The pre- and postoperative echocardiographic outcomes after bicuspid aortic valve repair from the subanalysis comparing patients with external (group EA, n=25) and subcommissural (group SCA, n=25) annuloplasty. *VAJ-ventriculo-aortic junction, LV- left ventricle*
	Before : (SD)	F-up: (SD)
Aortic Annulus (VAJ) [mm]
- External annuloplasty (group EA)	27.5(3.1)	24.1(2.6) p=0.002
- Subcommissural annuloplasty (group SCA)	27.7(4.7)	25.8(2.1) p= 0.7
p level	p=0.9	p=0.014
Aortic Root dimension [mm]
- External annuloplasty (group EA)	47.1 (4.16)	38.4 (4.6) p=0.003
- Subcommissural annuloplasty (group SCA)	41.1 (4.7)	36.4(3.3) p=0.02
p level	p=0.02	p=0.4
Sino-Tubular Junction dimension [mm]
- External annuloplasty (group EA)	40.4(4.1)	29.9(3.8) p=0.009
- Subcommissural annuloplasty (group SCA)	40.4 (7.5)	28.6(3.5) p=0.02
p level	p=0.7	p=0.4
Aorta dimension [mm]
- External annuloplasty (group EA)	49.5(6.6)	31.5(3.0) p<0.001
- Subcommissural annuloplasty (group SCA)	46.7(8.1)	31.8(3.8) p<0.001
p level	p=0.2	p=0.8
Enddiastolic volume of the LV [ml]
- External annuloplasty (group EA)	180.9(52.1)	157.1(40.1) p=0.06
- Subcommissural annuloplasty (group SCA)	203.7(100.1)	157.1(36.6) p=0.09
p level	p=0.5	p=0.99
Enddiastolic Diameter of the LV [mm]
- External annuloplasty (group EA)	55.2(5.7)	53.8 (5.3) p=0.12
- Subcommissural annuloplasty (group SCA)	64.5(10.8)	53.9(7.2) p=0.06
p level	p=0.1	p=0.8
Endsystolic Volume of the LV [ml]
- External annuloplasty (group EA)	71.2(33.0)	69.5(31.4) p=0.24
- Subcommissural annuloplasty (group SCA)	112.3(49.4)	62.8(24.2) p<0.001
p level	p=0.04	p=0.5
Endsystolic Diameter of the LV [mm]
- External annuloplasty (group EA)	49.0(8.3)	34.5(3.9) p=0.3
- Subcommissural annuloplasty (group SCA)	35.7(6.6)	30.2(3.9) p=0.14
p level	p<0.001	p=0.9
Ejection Fraction of the LV [%]
- External annuloplasty (group EA)	58.7 (12.1)	56.9(10.4) p=0.57
- Subcommissural annuloplasty (group SCA)	54.2 (12.8)	60.2(10.1) p=0.07
p level	p=0.2	p=0.4
Mean Transaortic Gradient [mmHg]
- External annuloplasty (group EA)	16.0(4.8)	7.0 (4.4) p=0.2
- Subcommissural annuloplasty (group SCA)	17.5(4.9)	12.6 (4.4) p=0.4
p level	p=0.7	p=0.02
Peak Transaortic Gradient [mmHg]
- External annuloplasty (group EA)	29.0(9.8)	14.4 (7.7) p<0.001
- Subcommissural annuloplasty (group SCA)	24.0(9.3)	20.0(7.6) p=0.1
p level	p=0.8	p=0.013
Width of the Aortic Regurgitant Jet [mm]
- External annuloplasty (group EA)	11.1 (1.9)	2.94 (3.0) p<0.001
- Subcommissural annuloplasty (group SCA)	9.9 (5.1)	3.17(3.5) p=0.001
p level	p=0.28	p=0.8

Source: by the author

Discussion

The presence of a bicuspid aortic valve (BAV) is associated with a high incidence of valve dysfunction, proximal aortic dilatation, and an increased risk of acute aortic events. Tzemos et al. reported cardiac events in 25% of patients and aortic dilatation in 45% of a cohort of 650 individuals over a nine-year follow-up period [18]. Similarly, in the Olmstead County study by Sarano et al., which followed an asymptomatic BAV population for 15 years, 42% experienced cardiac events and 27% eventually required cardiac surgery [19]. Thanasoulis identified predictors of aortic dilatation in 582 BAV patients, notably moderate to severe aortic insufficiency and the fusion of the right and left aortic valve leaflets [20]. Current clinical guidelines recommend valve-sparing operations for patients presenting with isolated aortic valve insufficiency [21].

In this single-center study, BAV repair combined with aortic root management proved both feasible and effective. The surgical approach resulted in 100% mid- and long-term survival, with satisfactory freedom from reoperation and stability of the repair. However, the durability of BAV repair appeared somewhat inferior compared to repairs of tricuspid aortic valves. This difference may be attributed to an underlying connective tissue disorder, a common feature in patients with BAV [22]. Progressive annular dilatation due to annuloaortic ectasia may also compromise the long-term stability of the repair. Therefore, our study further explored the impact of different annular stabilization techniques on echocardiographic outcomes.

Echocardiographic findings demonstrated that systolic cusp mobility remained well preserved following external annuloplasty (EA) but was somewhat diminished after subcommissural annuloplasty (SCA). This likely accounts for the lower transvalvular velocities and gradients observed in the EA group. Additionally, the EA technique significantly reduced the aortic annulus diameter two years postoperatively, which may explain the inferior performance of SCA reported in previous comparisons with valve-sparing root reimplantation (VSRR) in patients with large annuli [23]. Vallabhajosyula and colleagues found that a preoperative ventriculo-aortic junction diameter of 28 mm or more was associated with a higher recurrence rate of aortic regurgitation (grade >1+) following SCA than VSRR. However, in patients with smaller annuli, the durability of both approaches was comparable [24]. In our cohort, both groups had similarly enlarged annuli in the 27–28 mm range prior to surgery.

Our findings showed significant reverse remodeling of the left ventricle (LV) after BAV repair, evident both early and at medium-term follow-up. Importantly, this remodeling was comparable between the two annuloplasty techniques, although EA offered superior hemodynamic performance, as indicated by transaortic flow on Doppler echocardiography. We propose that more advanced imaging modalities, such as speckle tracking for regional deformation or three-dimensional volumetry, may be more sensitive in detecting subtle differences in LV function between groups.

Annuloplasty techniques remain under clinical investigation. It is well-established that suture-based SCA is prone to failure due to late redilatation of the aortic root. In contrast, root stabilization through reimplantation has demonstrated superior long-term outcomes compared to SCA alone [25,26]. Promising results have also been reported with internal and external annuloplasty rings [27,28]. Consistent with our findings, Schaefers et al. documented good durability of subcommissural or circular annuloplasty when combined with aortic root remodeling or replacement [29].

In conclusion, BAV repair is a safe procedure offering favorable short- and midterm outcomes. External annuloplasty is associated with superior annular stabilization and more favorable hemodynamic performance compared to subcommissural annuloplasty. We believe that the long-term durability of BAV repair can be further enhanced by more aggressive stabilization of the aortic root, particularly at the level of the ventriculo-aortic junction.

Conclusion

This study demonstrates that bicuspid aortic valve (BAV) repair, when performed with appropriate surgical techniques and combined with aortic root management, is a safe and effective procedure, yielding excellent short- and midterm survival. The findings highlight that external annuloplasty provides superior annular stabilization and improved hemodynamic performance compared to subcommissural annuloplasty, particularly in patients with annular dilatation. Moreover, the durability of BAV repair is significantly enhanced when accompanied by valve-sparing aortic replacement procedures. Given the progressive nature of aortopathy in BAV patients, careful selection of the annuloplasty technique and consideration of root stabilization at the ventriculo-aortic junction are critical to ensuring long-term repair success. Further long-term follow-up and prospective comparative studies are warranted to validate these findings and refine surgical strategies for BAV repair.

Acknowledgement Statement: The authors would like to thank the reviewers for providing comments in helping this manuscript to completion.

Conflicts of Interest: The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

CRediT Author contribution statements: Prof Marek Jasinski was the principal surgeon who conceived the procedure and reviewed the manuscript. Dr Jakub Jasinski collected echocardiographic outcomes and performed statistical analysis and co-wrote the last version of the manuscript.

Funding: This study was supported by the KNW2/136/06 statutory grant of the Medical University of Silesia, but it had no role in the study analysis and preparation of the manuscript.

Data Availability Statement: Data is available at request. Please contact the corresponding author for any additional information on data access or usage.

Disclaimer: The views and opinions expressed in this article are those of the author(s) and contributor(s) and do not necessarily reflect JHVD's or editors' official policy or position. All liability for harm done to individuals or property as a result of any ideas, methods, instructions, or products mentioned in the content is expressly disclaimed.

Read Counter : 94 Download : 30

Share Now

The Bicuspid Aortic Valve Repair With External Or Subcommissural Annuloplasty – A 13-Year Experience

Abstract

Full text article

References

Authors

Marek Jasinski, 4. Department of Cardiac Surgery, Wroclaw Medical University, Wroclaw, Poland

Jakub Jasinski, Department of Cardiology and Structural Heart Diseases, Medical University of Silesia, Katowice, Poland

Damian Hudziak , Department of Cardiac Surgery, Medical University of Silesia, Katowice, Poland

Andrzej Kansy, Children’s Memorial Pediatric Health Institute, Warsaw, Poland

Radoslaw Gocol, Department of Cardiac Surgery, Medical University of Silesia, Katowice, Poland

How to Cite

Similar Articles

ISSN & Website Link

Contact Info

Article Sidebar

Abstract

Full text article

References

Authors

Marek Jasinski, 4. Department of Cardiac Surgery, Wroclaw Medical University, Wroclaw, Poland

Jakub Jasinski, Department of Cardiology and Structural Heart Diseases, Medical University of Silesia, Katowice, Poland

Damian Hudziak , Department of Cardiac Surgery, Medical University of Silesia, Katowice, Poland

Andrzej Kansy, Children’s Memorial Pediatric Health Institute, Warsaw, Poland

Radoslaw Gocol, Department of Cardiac Surgery, Medical University of Silesia, Katowice, Poland

Article Details

How to Cite

Similar Articles

ISSN & Website Link

Contact Info
