3D Printed Prosthetic Heart Valve

Yahweh Van Ram Sri

doi:10.36923/jhvd.v30i1.309

Open Access Review Article

Yahweh Van Ram Sri ⁽¹⁾

1. Adult Learning, Singapore University of Social Sciences, Singapore

https://doi.org/10.36923/jhvd.v30i1.309

Issue
Vol. 30 No. 1 (2025)

Submitted
April 19, 2025

Accepted
May 29, 2025

Published
June 11, 2025

Keywords:

3D Printed Prosthetics, Prosthetic Heart Valve, Valve Replacement, Biocompatible, Tissue Regeneration, Cardiovascular

Ask AI (Dimensions)

Download PDF

Abstract

Heart valve replacements are life-saving procedures essential for patients with dysfunctional heart valves. The global market for prosthetic heart valves is valued at approximately USD 8.71 billion in 2024, with devices available in various forms, including mechanical, transcatheter, and biological valves used for both replacement and repair procedures. While traditional prosthetic valves have improved survival, they present several limitations that contribute to postoperative complications over time. These include limited durability, the need for long-term anticoagulation due to clot formation linked to immune responses, mechanical valve noise (often described as clicking or squishing sounds), the inability to accommodate growth in pediatric patients, and suboptimal anatomical fit for certain individuals with complex health conditions. Moreover, common complications associated with these valves include stroke, bleeding, and leakage around valve flaps following surgery. In contrast, emerging 3D printed heart valves, fabricated from advanced co-polymers, show promise in early laboratory studies, demonstrating excellent tissue compatibility and the potential to reduce or eliminate the need for lifelong blood-thinning medications

Full text article

Generated from XML file

References

3D-Printing-Industry. (2022). Researchers 3D print regenerative heart valves that grow with patients. Retrieved from https://3dprintingindustry.com/news/researchers-3d-print-regenerative-heart-valves-that-grow-with-patients-206122/ Google Scholar | WorldCat

BSI. (2023). 3D printing and medical device regulation. Retrieved from https://compliancenavigator.bsigroup.com/en/medicaldeviceblog/3d-printing-and-medical-device-regulation/ Google Scholar | WorldCat

Chen, E., Sapirstein, W., Ahn, C., Swain, J., & Zuckerman, B. (2006). FDA perspective on clinical trial design for cardiovascular devices. The Annals of Thoracic Surgery, 82(3), 992-999. https://doi.org/10.1016/j.athoracsur.2006.07.044 Google Scholar | Crossref | WorldCat

ISO. (2016). *ISO 13485:2016 - Medical devices - Quality management systems - Requirements for regulatory purposes.* Retrieved from https://www.iso.org/standard/59752.html Google Scholar | WorldCat

ISO. (2019). *ISO 14971:2019 - Medical devices - Application of risk management to medical devices.* Retrieved from https://www.iso.org/standard/72704.html Google Scholar | WorldCat

Lee, A. P. W., Leong, C. W. M., Kwok, K.-W., & Fan, Y. (2018). Using 3D printed models for planning transcatheter aortic valve implantation in patients with bicuspid aortic valve. The Journal of Thoracic and Cardiovascular Surgery, 156(6), 1115-1121. https://doi.org/10.1016/j.jtcvs.2018.07.052 Google Scholar | Crossref | WorldCat

Mayo Clinic. (2024a). Heart valve disease. Retrieved from https://www.mayoclinic.org/diseases-conditions/heart-valve-disease/symptoms-causes/syc-20353727 Google Scholar | WorldCat

Mayo Clinic. (2024b). Heart valve surgery. Retrieved from https://www.mayoclinic.org/tests-procedures/heart-valve-surgery/about/pac-20384901 Google Scholar | WorldCat

MNT. (2023). Can heart valve problems be treated with medication? Retrieved from https://my.vanderbilthealth.com/common-medications-for-heart-valve-problems/ Google Scholar | WorldCat

University of Cambridge. (2020). New artificial heart valve could transform open-heart surgery[Press release]. Retrieved from https://www.cam.ac.uk/research/news/new-artificial-heart-valve-could-transform-open-heart-surgery Google Scholar | WorldCat

Zhang, X., Xu, B., Puperi, D. S., Wu, Y., West, J. L., & Grande-Allen, K. J. (2015). Application of hydrogels in heart valve tissue engineering. Proceedings of the IEEE Engineering in Medicine and Biology Society, 2015, 7268-7271. https://doi.org/10.1109/EMBC.2015.7320065 Google Scholar | Crossref | WorldCat

Authors

Yahweh Van Ram Sri

https://orcid.org/0000-0002-3847-3650

ramvanyahweh@gmail.com (Primary Contact)

Sri, Y. V. R. (2025). 3D Printed Prosthetic Heart Valve. Journal of Heart Valve Disease Innovation, 30(1), 62-70. https://doi.org/10.36923/jhvd.v30i1.309

Download Citation

This work is licensed under a Creative Commons Attribution 4.0 International License.

Copyright / Open Access Policy: This journal provides immediate free open access and is distributed under the terms and conditions of the Creative Commons Attribution License (CC BY). This is an open-access journal which means readers can access it freely. Readers may read, download, copy, distribute, print, search, or link to the full texts of the articles for any lawful purpose without seeking prior permission from the publisher or author. This is consistent with the Budapest Open Access Initiative (BOAI) definition of open access.

How to Cite

Sri, Y. V. R. (2025). 3D Printed Prosthetic Heart Valve. Journal of Heart Valve Disease Innovation, 30(1), 62-70. https://doi.org/10.36923/jhvd.v30i1.309

Download Citation

Introduction

The introduction of 3D-printed heart valves represents a groundbreaking advancement in cardiovascular medicine, offering new and promising treatment options for patients. This emerging technology holds significant potential through the use of biocompatible materials and the incorporation of patient-specific cells, allowing for highly customized and potentially regenerative prosthetic valves. Heart valve replacement procedures are critical life-saving interventions that impact millions of individuals worldwide. The global market for prosthetic heart valves reflects this growing demand, with an estimated value of USD 8.71 billion in 2024 and a projected increase to USD 20.43 billion by 2032.

Heart valves function as one-way gates, ensuring unidirectional blood flow and preventing leakage or backflow within the heart's four chambers. Anatomically, the right side of the heart includes the tricuspid valve, located between the right atrium and right ventricle, and the pulmonary valve, situated between the right ventricle and pulmonary artery. On the left side, the bicuspid (mitral) valve separates the left atrium from the left ventricle, while the aortic valve regulates blood flow from the left ventricle into the aorta. Proper functioning of these valves is essential for maintaining efficient systemic and pulmonary circulation.

Traditional prosthetic heart valves have significantly improved patient outcomes but remain limited by factors such as mechanical wear, risk of thrombosis, and lack of growth potential in pediatric patients. In contrast, 3D printed heart valves demonstrate enhanced durability, exceeding the established clinical benchmark of 10 years and potentially maintaining functionality for up to 25 years, as suggested by current laboratory testing standards. These technological innovations offer a transformative solution, particularly for younger patients who may otherwise require multiple surgeries over their lifetimes.

Background and Literature Review

Diseased Heart Valve Conditions

Heart valve diseases encompass several structural and functional abnormalities, such as stenosis (narrowing), regurgitation (leakage), prolapse, atresia, and congenital defects. Stenosis occurs when the valve narrows, restricting blood flow from one chamber of the heart to another. This condition leads to a mismatch between ventilation and perfusion, resulting in symptoms such as dyspnea, fatigue, weakness, angina (chest pain), heart palpitations, dizziness or fainting (syncope), swelling (edema), cough, and cyanosis. If left untreated, these conditions can progress to serious complications, including heart failure, arrhythmias, stroke or transient ischemic attack, infective endocarditis, pulmonary hypertension, blood clots, sudden cardiac death, and developmental delays.

3D-printed heart valves offer a novel therapeutic solution for various valve diseases. For stenosis, 3D printed valves can replace the narrowed valve and restore normal leaflet-controlled blood flow. In cases of regurgitation, where the valve leaks and allows blood to flow backward, 3D printed valves can create a competent seal, ensuring unidirectional blood flow. Similarly, for prolapse, where the valve leaflet bulges backward into the upper chamber during heartbeats, the structural durability of 3D printed valves could provide a long-term corrective solution, depending on severity and etiology. In atresia, where the valve is either blocked or underdeveloped, 3D printed valve replacements allow for continuous endothelial cell growth and restore functional blood circulation. For congenital heart defects, which involve structural abnormalities present at birth, 3D printing technology offers patient-specific designs by utilizing digital imaging to generate customized heart valve models that suit each patient’s unique anatomy, particularly valuable for pediatric patients who often outgrow traditional prosthetic valves.

Traditional valve replacement options often fall short of providing long-term solutions, especially for younger patients. Due to their fixed size and limited adaptability, conventional prosthetic valves frequently require multiple surgeries as the patient grows. Moreover, they carry higher risks of blood clot formation, necessitating long-term anticoagulation therapy. In contrast, 3D printed valves potentially reduce clotting risks owing to the uniform distribution of endothelial cells across valve scaffolds, which diminishes the need for continuous medication.

Multiple studies have investigated the development of 3D-printed heart valves. In the first study, “Researchers 3D Print Regenerative Heart Valves That Grow with Patients” (3D-Printing-Industry, 2022), researchers utilized melt electrowriting to create microfibers from molten polymers, though the specific materials used were not disclosed. The second study, “Using 3D Printed Models for Planning Transcatheter Aortic Valve Implantation in Patients with Bicuspid Aortic Valve” (Lee et al., 2018), emphasized the role of 3D printed anatomical models in improving surgical planning, but again did not specify scaffold materials. The third study from the University of Cambridge, titled “New Artificial Heart Valve Could Transform Open-Heart Surgery” (2020), described the PoliValve, fabricated from special co-polymers created by combining two monomers; however, detailed composition was not fully disclosed.

Although specific materials were not consistently reported across these studies, contemporary research indicates that suitable biocompatible materials for 3D printed heart valves may include polyurethanes, polyethylene glycol, and novel co-polymers (Zhang et al., 2015). These materials enable designs that incorporate microscopic pores, allowing patient-derived stem cells to populate the scaffold. The integration of such cells supports nutrient and waste exchange, promoting tissue growth that ultimately transforms the prosthetic valve into living tissue. This biological integration potentially eliminates the need for future valve-replacement surgeries.

The primary objective of 3D printed heart valves is to replicate the function of natural valves through advanced design and biomaterials. Unlike conventional valves, 3D printed scaffolds feature engineered porosity that facilitates host tissue ingrowth. As patient tissue grows into these porous structures, the valve theoretically evolves into a living component of the cardiovascular system, potentially extending functionality beyond that of traditional prosthetics. To ensure clinical safety, these innovative valves must successfully endure durability tests, typically requiring no fewer than 200 million opening and closing cycles over five years of laboratory trials.

The Cambridge-Bristol team has developed polymeric structural designs that reportedly exceed these stringent durability requirements. Four principal heart valves are targeted in this ongoing research: the aortic, mitral (bicuspid), pulmonary, and tricuspid valves. Each of these valves contains leaflets or cusps that open and close to facilitate unidirectional blood flow. Malfunction of any valve significantly impairs systemic or pulmonary circulation. According to the Mayo Clinic (2024a), four common adult heart valve diseases include stenosis, regurgitation, prolapse, and atresia, while congenital valve defects remain a major concern for pediatric patients.

Traditional prosthetic valves often prove inadequate due to their limited capacity to adapt to physiological growth, especially in children with congenital heart defects. In these cases, 3D printed valves present a transformative alternative, potentially offering better biocompatibility, natural tissue growth, and reduced surgical interventions over time. Promising developments in 3D printing technologies, materials, and processes are being reported by research teams from institutions such as the Technical University of Munich (TUM), the University of Western Australia, and the University of Cambridge, which continue to explore these novel treatment avenues (3D-Printing-Industry, 2022; Lee et al., 2018; University of Cambridge, 2020).

Literature on 3D-Printed Prosthetic Heart Valves

Artificial heart valves must undergo rigorous laboratory testing to ensure their safety, durability, and functionality. International standards typically require that these devices withstand a minimum of 200 million opening and closing cycles during durability testing. Compared to traditional mechanical, transcatheter, or biological prosthetic valves, 3D printed heart valves offer the potential for significantly lower rejection risks and extended functional lifespan, thanks to their advanced design and material characteristics.

Current research into 3D printed heart valves is rapidly advancing, particularly in the development of biocompatible materials suitable for fabricating the valve leaflets. According to Zhang, Puperi, Wu, West, and Grande-Allen (2015), materials such as polyurethanes, polyethylene glycol, and novel biocompatible copolymers are being used to achieve optimal mechanical properties. The reviewed literature covers a wide range of topics, including clinical applications, design innovations, regulatory requirements, risk management, and manufacturing protocols. Standards such as ISO 14971 (Hazard Traceability Matrix), Medical Device Regulation (MDR), Good Manufacturing Practices (GMP), ISO 13485 (Quality Management Systems), and FDA guidelines are essential to ensuring the safety and effectiveness of these emerging devices.

3D-printed valves serve as a promising alternative for replacing diseased or damaged heart valves. They are engineered for superior durability, with a functional lifespan projected to extend up to 25 years, thereby reducing the likelihood of multiple surgeries often required with conventional prostheses. By incorporating porous scaffolds, 3D printed valves allow patient-derived cells to integrate into the structure, facilitating tissue regeneration and transforming the prosthesis into living, functional tissue. This biological integration may ultimately eliminate the need for future replacements, particularly benefiting pediatric patients whose growth would otherwise necessitate multiple interventions.

The clinical advantages of 3D printed valves extend beyond mechanical durability. These valves offer better regulation of blood flow, reduced thrombotic risk, improved immune tolerance, and decreased dependency on long-term anticoagulant and cardiac medications such as antiarrhythmics, ACE inhibitors, ARBs, beta-blockers, and vasodilators (MNT, 2023). Moreover, enhanced biocompatibility may expand eligibility for valve replacement in younger and high-risk patients.

However, the introduction of 3D printed prosthetic valves is not without challenges and risks. The ISO 14971 (2019) Hazard Traceability Matrix identifies several key hazard categories. HVR-1 addresses biocompatibility issues, such as tissue rejection and inflammation, primarily caused by incompatible biomaterials or improper cell seeding techniques. Mitigation strategies include rigorous material testing, controlled cell seeding protocols, and careful post-implantation monitoring. HVR-2 highlights design flaws and manufacturing defects that may compromise structural integrity due to stress distribution issues or 3D printing defects. Mitigating these risks requires comprehensive structural analysis, robust manufacturing quality control, and pre-implantation imaging. HVR-3 addresses infection risks arising from inadequate sterilization and breaches in aseptic technique; these require strict sterilization protocols, surgeon training, and vigilant postoperative monitoring.

Patient selection poses another significant risk (HVR-4). The absence of standardized patient selection criteria or insufficient preoperative evaluation may lead to poor outcomes. To mitigate this, comprehensive assessment protocols and continuous clinical research are required. Finally, HVR-5 concerns the limited availability of long-term clinical data for 3D printed heart valves, which remains a challenge due to the novelty of the technology. Ongoing longitudinal studies, patient registries, and transparent patient communication will be essential to building confidence in these devices over time.

Good Practices for 3D-Printed Prosthetic Heart Valves

The regulatory landscape for 3D-printed prosthetic heart valves is still evolving as these technologies mature. According to BSI Compliance Navigator (BSI, 2023), ISO regulations for custom-made devices, where 3D printed valves are modeled using patient-specific imaging, do not require CE marking, thus opening new avenues for research and development without the constraints of mass production certification. However, such custom devices still require a prescription from a registered medical practitioner to ensure clinical appropriateness.

Compliance with international standards such as ISO 13485 (2016) ensures adherence to safety and performance requirements, alongside continuous post-market surveillance. Regulatory approval processes vary globally. The FDA emphasizes early interaction with regulatory agencies, proper trial design, and thorough data collection for device evaluation (Chen et al., 2006). Randomized controlled trials (RCTs) remain the gold standard for device approval, but given the complexity of 3D printed valves, adaptive trial designs may be necessary. The FDA’s total product lifecycle approach includes the entire development pathway: concept, prototype, preclinical studies, clinical trials, manufacturing, marketing, clinical use, and eventual obsolescence.

In the European Union, Medical Device Regulation (MDR 2017/745) classifies heart valves, including 3D printed versions, as Class III devices, denoting the highest risk category due to their novelty and life-sustaining function (ISO, 2016). While the 3D printer itself is not considered a medical device, the printed valve must comply with GMP guidelines to ensure consistent safety and quality during manufacturing.

Several GMP best practices are recommended to optimize biocompatibility and patient outcomes. First, customization allows for the precise fitting of each valve to the patient’s unique heart anatomy. Second, controlled cell seeding techniques enable accurate placement of patient-derived stem cells within the scaffold to promote tissue regeneration. Third, scaffold designs must be optimized for pore size, biodegradability, and mechanical strength to encourage integration and replacement of synthetic material by natural tissue. Fourth, strict sterilization protocols are essential to prevent perioperative infection. Fifth, regulatory compliance must be continuously updated to incorporate the latest research findings and clinical evidence (ISO 13485, 2016).

As novel 3D printed valves continue to evolve, their designs, materials, and manufacturing processes are diverging significantly from traditional models. BSI Compliance Navigator (BSI, 2023) indicates that 3D printed valves require FDA 510(k) clearance or Premarket Approval (PMA), with PMA generally preferred due to the high-risk nature of the device. This process requires comprehensive clinical safety and efficacy data.

In addition to regulatory processes, clinical guidelines for patient care are critical for successful implementation. Preoperative evaluations should include detailed patient assessments, informed consent, and stem cell harvesting. Postoperative care requires regular follow-up appointments, medication management, imaging studies, and careful monitoring for complications. Surgical approaches may vary between open-heart surgery, which requires large incisions and carries greater risk, and minimally invasive techniques such as thoracoscopic or robot-assisted surgery that offer faster recovery and fewer complications (Mayo Clinic, 2024b). Postoperative rehabilitation programs, including dietary guidance, exercise, stress management, and smoking cessation, are essential for promoting long-term patient well-being following valve replacement surgery.

Methodology

The present study adopts a structured approach to examine the clinical, technical, and regulatory dimensions of 3D printed prosthetic heart valves. The methodology is organized into three primary phases. First, a comprehensive review of diseased heart valve conditions is conducted, focusing on the clinical indications that necessitate valve replacement and the specific challenges these diseases present. This review establishes the clinical context for the development of advanced prosthetic solutions.

The second phase involves performing a baseline hazard assessment for 3D printed heart valves, utilizing the ISO 14971 framework, which is the international standard for risk management in medical devices. This hazard assessment systematically identifies potential risks associated with 3D printed valve design, material biocompatibility, manufacturing defects, patient selection, infection control, and long-term clinical outcomes. For each identified hazard, corresponding causes, potential harms, and mitigation strategies are documented to ensure comprehensive risk evaluation.

The final phase focuses on identifying and compiling good practices relevant to the design, development, manufacturing, and clinical implementation of 3D printed heart valves. These practices include both technical standards and regulatory considerations, guided by ISO 13485, which governs quality management systems for medical devices. The methodology also incorporates best practices for customization through 3D imaging technologies, allowing for patient-specific valve design. Additionally, the approach integrates essential steps for ensuring safety, regulatory compliance, and clinical trial design, including early engagement with regulatory agencies and adherence to appropriate approval pathways.

Through this multi-phase methodology, the study aims to present a comprehensive evaluation of 3D printed prosthetic heart valves, addressing both their clinical promise and the rigorous safety standards required for successful medical device development.

Results and Findings

A baseline hazard assessment was performed following the ISO 14971 (2019) risk management framework to systematically identify and evaluate the key risks associated with 3D printed prosthetic heart valves. The analysis resulted in the identification of five primary hazard categories, each classified within the Hazard Traceability Matrix (Table 3), with corresponding causes, potential harms, and recommended mitigation strategies.

The first identified hazard, HVR-1 (Biocompatibility Issues), arises primarily from the use of incompatible biomaterials or improper cell seeding techniques during valve fabrication. These factors may lead to inflammatory responses or tissue rejection post-implantation. The second hazard, HVR-2 (Design Flaws and Manufacturing Defects), relates to potential structural weaknesses in the valve caused by errors in design geometry or defects introduced during the 3D printing process. Such flaws may compromise the mechanical integrity and functional durability of the valve.

The third hazard, HVR-3 (Infection Risk), is a critical concern, particularly when sterilization protocols are insufficient or aseptic techniques are compromised during surgical implantation. Infections can significantly impact patient outcomes and increase postoperative complications. The fourth hazard, HVR-4 (Improper Patient Selection), stems from the absence of well-defined selection criteria or inadequate patient evaluation prior to implantation, which may lead to poor clinical results or device failure. Finally, HVR-5 (Limited Long-Term Data) reflects the novelty of this technology, as insufficient clinical experience and a lack of long-term outcome data limit current understanding of the valves’ performance over time.

To address these risks, several risk mitigation measures aligned with GMP guidelines for 3D printed prosthetic devices (Figure 1) have been proposed. These include rigorous biocompatibility testing, advanced structural design validation, sterilization protocol development, patient selection protocols, and custom scaffold fabrication techniques that incorporate controlled cell seeding. The implementation of these measures aims to optimize both the safety and efficacy of 3D printed heart valve technologies.

Table 1. Prosthetic Heart Valve Market Size (2022–2032)
Column 1 (2022 to 2027)		Column 2 (2028 to 2032)
Year	Market Size (USD Billion)	Year	Market Size (USD Billion)
2022	7.1	2028	13.24
2023	7.86	2029	14.74
2024	8.71	2030	16.42
2025	9.66	2031	18.31
2026	10.72	2032	20.43
2027	11.91

Source: https://www.precedenceresearch.com/prosthetic-heart-valve-market

Table 2.Aortic Valve in Three Studies
Aortic Valve in Three Studies
No.	Study Name	Summary
1	Referred Study, Researchers 3D Print Regenerative Heart Valves That Grow with Patients.(3D-Printing-Industry, 2022)	3D printed heart valve, highlighting the intricate structure that can be created using this technology. This study centers on the development of 3D printed heart valves with the unique ability to potentially grow with the patient. This is a significant advancement, as traditional prosthetic valves often require replacement, especially in pediatric patients. The 3D printed valves are made from special co-polymers, and early tests suggest good tissue compatibility. This is crucial for reducing the risk of complications like blood clotting and immune responses, potentially eliminating the need for patients to take blood-thinning medication. The study suggests that these regenerative valves could offer a long-term solution for patients with heart valve disease, reducing the need for repeated surgeries and improving their quality of life.Source: https://3dprintingindustry.com/news/researchers-3d-print-regenerative-heart-valves-that-grow-with-patients-206122/
2	Referred Study, using 3D printed models for planning transcatheter aortic valve implantation in patients with bicuspid aortic valve.(Lee, Leong, Kwok & Fan, 2018)	3D model of a heart, demonstrating how 3D printing can create accurate replicas of complex anatomical structures. This study focuses on using 3D printed heart models to plan transcatheter aortic valve implantation (TAVI) procedures in patients with a bicuspid aortic valve. A bicuspid aortic valve, a valve with two leaflets instead of the usual three, presents challenges during TAVI procedures. The 3D printed models allow surgeons to visualize the patient's unique anatomy, assess the size and shape of the valve, and plan the procedure with greater precision. By using 3D models, surgeons can optimize the selection of the prosthetic valve, determine the best approach for implantation, and anticipate potential complications. This can lead to improved outcomes, reduced risks, and increased success rates for TAVI procedures in these complex cases.Source: https://doi.org/10.1016/j.jtcvs.2018.07.052
3	Referred Study, New artificial heart valve could transform open-heart surgery.(University of Cambridge, 2020).	From this study by University of Cambridge (2020) the comparison of a 3D printed valve and a conventional valve, emphasizing the potential for 3D printing to create more advanced and customised solutions. This study explores the potential of new artificial heart valves, possibly created using 3D printing, to transform traditional open-heart surgery. Traditional open-heart surgery is invasive and involves a lengthy recovery period. The development of more advanced artificial heart valves could potentially simplify the surgical procedure, reduce the risk of complications, and shorten recovery times. The study suggests that 3D printing could enable the creation of customized heart valves that are better suited to individual patients' needs, leading to improved long-term outcomes. These new valves may also be more durable and less prone to complications than current options.Source: https://www.cam.ac.uk/research/news/new-artificial-heart-valve-could-transform-open-heart-surgery

Table 3. Hazard Traceability Matrix
Hazard ID	Hazard Description	Potential Cause	Effect/Harm	Risk Evaluation (Occurrence × Severity)	Risk Control Measures	Verification	Residual Risk
HVR-1	Biocompatibility tissue rejection or inflammation	* Use of incompatible biomaterials* Improper cell seeding techniques	Patient immune response, tissue death, valve dysfunction	High (Developing technology, potential for severe complications) × High (Severe health consequences) = High Risk	* Rigorous biocompatibility testing of materials* Development of standardized cell seeding procedures* Post-implantation immune response monitoring	* Review of material testing data* Verification of cell seeding procedures* Analysis of post-implant patient data	Moderate (Risk cannot be eliminated entirely, but mitigation strategies are in place)
HVR-2	Design flaws or manufacturing defects of 3D printed scaffold	* Design flaws in stress distribution* Defects in the 3D printing process	Valve leakage, blood clots, heart failure	High (Developing technology, potential for life-threatening complications) × High (Life-threatening consequences) = High Risk	* Rigorous structural analysis and testing of valve design* Implementation of robust quality control measures during manufacturing* Pre-implantation imaging to assess valve integrity	* Review of design simulations and testing data* Inspection of manufactured valves for defects* Verification of pre-implantation imaging results	Moderate (Risk cannot be eliminated entirely, but mitigation strategies are in place)
HVR-3	Infection from contamination of the valve	* Inadequate sterilization procedures* Breaches in sterile technique during implantation	Post-operative infection, sepsis	High (Developing technology, potential for life-threatening complications) × High (Life-threatening consequences) = High Risk	* Development and implementation of stringent sterilization protocols for valves* Training of healthcare professionals on sterile implantation procedures* Post-operative monitoring for signs of infection	* Review and validation of sterilization protocols* Observation of surgical procedures* Analysis of post-operative patient data for infection	Moderate (Risk cannot be eliminated entirely, but mitigation strategies are in place)
HVR-4	Improper patient selection for a 3D printed heart valve	* Lack of clear selection criteria* Insufficient patient evaluation	Valve malfunction, complications due to patient incompatibility with the technology	Medium (Developing technology, potential for serious complications) × Medium (Serious health consequences) = Medium Risk	* Development of clear patient selection criteria based on age, health status, and valve condition* Thorough patient evaluation pre-implantation to assess suitability for the technology* Ongoing research to refine patient selection criteria	* Review and validation of patient selection criteria* Evaluation of patient data to ensure proper selection* Analysis of data on post-implant complications in different patient groups	Low (Risk can be mitigated through proper patient selection)
HVR-5	Longitudinal data efficacy of 3D printed heart valves	* New technology with limited clinical experience	Unforeseen complications related to long-term performance or tissue interaction	Medium (Developing technology, potential for unknown complications) × Medium (Serious health consequences) = Medium Risk	* Continued research with long-term follow-up studies on implanted valves* Open communication with patients about the limitations of current knowledge* Development of registries to track patient outcomes	* Monitoring of ongoing research and clinical trials* Transparency with patients regarding limited long-term data* Analysis of data from patient registries	Low (Risk can be mitigated through ongoing research and transparency)

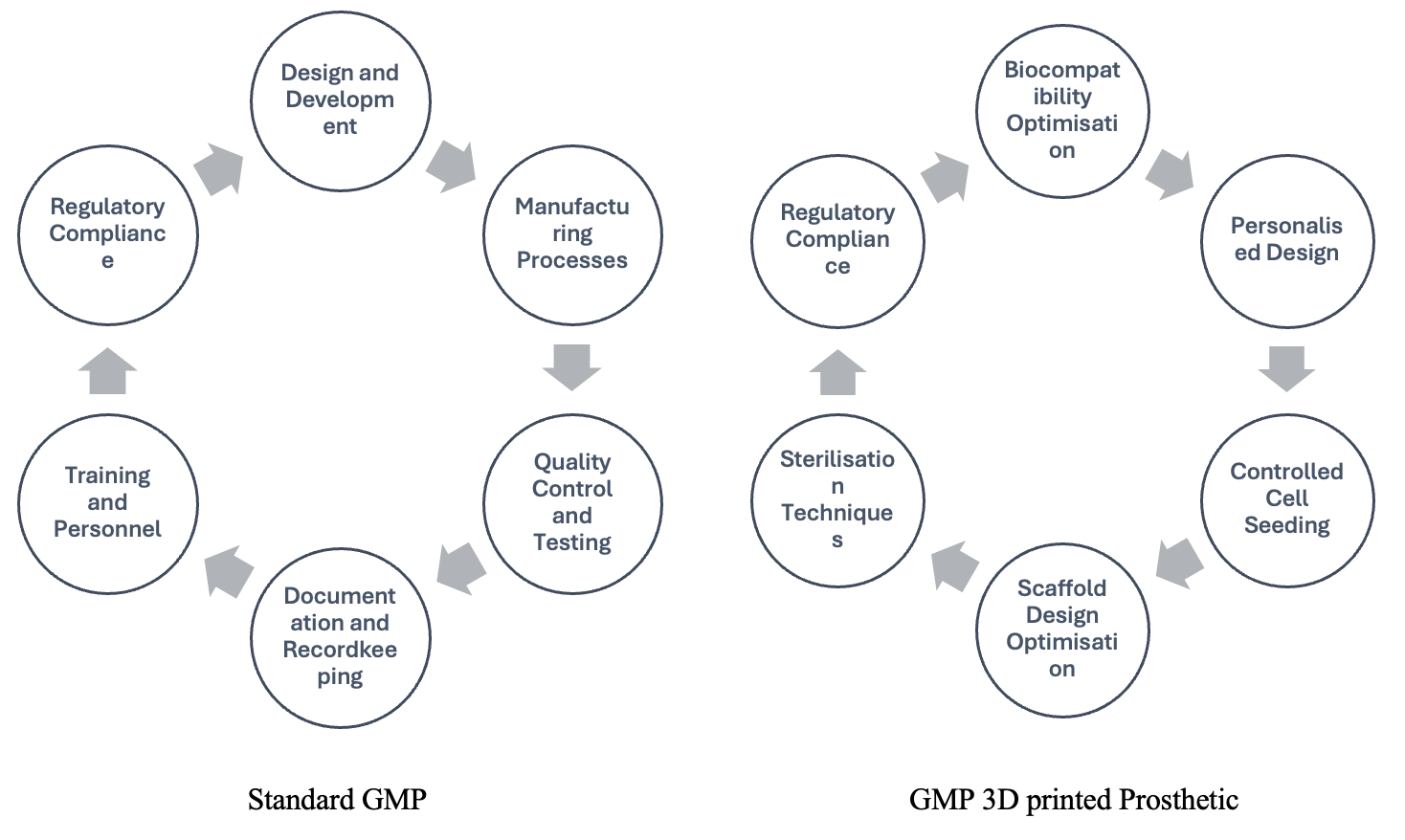

Figure 1.GMP vs GMP 3D Printed Prosthetic

Table 4.GMP vs GMP 3D Printed Prosthetic
Checklist for Patient Care (Future Implementation)
Pre-Implantation	1	Thorough evaluation of the patient's suitability for a 3D printed heart valve considering factors like age, overall health, and specific valve condition.T
	2	Informed consent process detailing the potential benefits, risks, and limitations of this new technology compared to traditional options.
	3	Potential harvesting of the patient's stem cells for later use in valve creation.
Post-Implantation	1	Regular follow-up appointments with a cardiologist to monitor valve function and tissue growth.
	2	Adherence to prescribed medications to manage any potential immune response or blood clotting risks.
	3	Advanced imaging techniques (regular examinations and echocardiograms, antithrombotic therapy, and appropriate antibiotic prophylaxis against endocarditis) to assess valve performance and tissue ingrowth over time.

Discussion

Although traditional prosthetic heart valves have revolutionized cardiovascular surgery, they are still limited by issues such as mechanical wear, the need for lifelong anticoagulation therapy, audible valve noise, and the inability to accommodate patient growth, particularly in pediatric cases. In comparison, 3D-printed heart valves offer several transformative advantages that may overcome many of these long-standing challenges.

Addressing the biocompatibility risks identified in HVR-1 requires comprehensive preclinical testing of biomaterials, alongside the establishment of controlled protocols for stem cell seeding. Continuous post-implantation immune response monitoring is also essential to ensure long-term tissue integration and prevent adverse inflammatory reactions.

For HVR-2, concerning design flaws and manufacturing defects, structural simulations, finite element modeling, and in vitro fatigue testing must be conducted to ensure the mechanical reliability of valve designs. In addition, robust quality assurance programs must be integrated into the manufacturing workflow, including real-time imaging to verify scaffold integrity before clinical implantation.

Infection prevention (HVR-3) necessitates the development and implementation of rigorous sterilization protocols throughout both manufacturing and surgical implantation phases. Furthermore, surgical teams must receive specialized training in aseptic techniques, and patients must be closely monitored for postoperative signs of infection.

Mitigating improper patient selection (HVR-4) requires the formulation of stringent clinical assessment protocols to carefully evaluate each patient’s suitability for 3D printed valve implantation. These guidelines should be continually refined based on emerging clinical trial data to ensure appropriate patient-device matching.

Finally, addressing the limited long-term data (HVR-5) involves the establishment of long-term, multicenter clinical studies and patient registries. Transparent patient communication regarding the investigational nature of 3D printed valves remains essential. By adopting these strategies, the medical community can progressively build a robust evidence base that supports the safe, effective, and ethically responsible adoption of 3D printed prosthetic heart valves.

Conclusions

3D printed heart valve replacement represents a cutting-edge advancement in cardiovascular medicine, offering patients expanded therapeutic options characterized by superior durability, enhanced biocompatibility, and the potential for true biological integration. Unlike conventional prosthetic valves, these next-generation devices can theoretically function for 25 years or longer, while also supporting tissue growth through nutrient and waste exchange, ultimately transforming into living components within the patient’s cardiovascular system.

The successful clinical adoption of 3D printed heart valves, however, depends not only on the technological breakthroughs but also on the establishment of robust regulatory frameworks and the accumulation of comprehensive clinical evidence. Strict adherence to internationally recognized standards such as ISO 14971 for risk management and ISO 13485 for quality management systems is essential to ensure safety and effectiveness. Transparent clinical reporting, patient registries, and long-term post-market surveillance will further strengthen the body of evidence supporting the safety and efficacy of these innovative devices.

It is important to recognize that while 3D printers serve as the manufacturing instruments for producing customized prosthetic valves, the printers themselves are not classified as medical devices. Regulatory oversight must, therefore, focus on the final 3D printed prosthetic valves, including their design, materials, biocompatibility, and manufacturing processes. Global harmonization through consistent application of FDA and ISO standards will be essential for ensuring safe, effective, and equitable access to this transformative technology across international healthcare systems.

As promising scientific studies continue to validate the safety, performance, and patient-centered benefits of 3D printed prosthetic heart valves, patient confidence and clinical acceptance are expected to grow. This convergence of engineering, medicine, and regulatory science offers a compelling future for personalized cardiac care, particularly for patients who have historically faced limited options with existing valve replacement technologies.

Acknowledgement Statement: The following organisations are acknowledged for their contributions to this article. Maximum Wellness, a research institute and education service provider affiliated with SkillsFuture Singapore, for providing the devices used in this research. I would also like to thank my colleagues and family for their support and encouragement throughout this project. I have obtained permission from Maximum Wellness, mentioned in this Acknowledgements section..

Conflicts of Interest: The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

CRediT Author contribution statements: Authors meet the criteria for authorship as outlined in the authorship policy and author contribution statement policies. Sri Yahweh Van Ram wrote and is the sole owner of the manuscript..

Funding: This research received no specific grant from any funding agency in the public, commercial, or not-for-profit sectors.

Data Availability Statement: Data is available at request. Please get in touch with the corresponding author for any additional information on data access or usage.

Disclaimer: The views and opinions expressed in this article are those of the author(s) and contributor(s) and do not necessarily reflect JHVD's or editors' official policy or position. All liability for harm done to individuals or property as a result of any ideas, methods, instructions, or products mentioned in the content is expressly disclaimed.
